Description

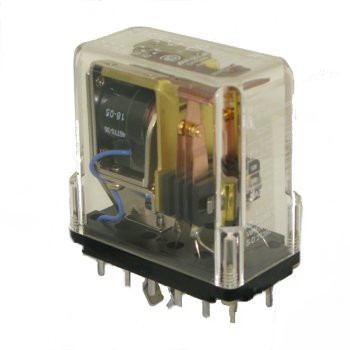

120vac DPDT 10 amp Industrial Relay
Voltage, Coil : 120 VAC
Coil resistance is 250 Ohms to 6200 Ohms
Current, Coil : 75 mA @ 60 Hz, 40 mA @ 60 Hz (Inrush Open, Sealed Pull-In)
Contact Form : DPDT, 10 A
Dimensions : 3.062 in. L x 1.468 in. W x 3.406 in. H
Material, Contact : Silver Alloy
Mounting Type : Panel Mount; Terminal type is plug-in.
Standards : cUL Recognized, CSA Certified, cUL Listed
Terminal Type : Plug-In / Socketed
Dimension is 3.062 ” L x 1.468 ” W x 3.406 ” H
cUL Recognized, cUL Listed, CSA Certified standards
Struthers-Dunn
219XBXP-120A
