Description

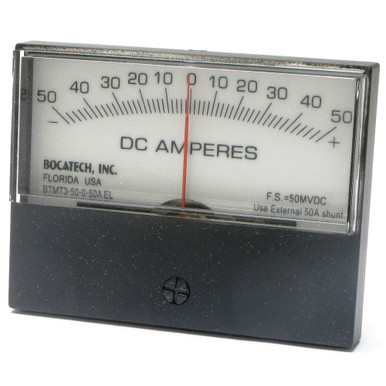

50-0-50 Amp DC Analog Panel Meter, Illuminated, 3 Inch
Product Details:
Linear Scale 50 – 0 – 50 Amp DC with 2 Amp Divisions
50 Amp / 50 mV Shunt Required (NOT Included)
Meter Movement: 50 mV
Meters Reads Both Charge – Discharge Current
Separate 12 Volt DC Backlight Connections
Meter Input: Screw Terminals
Panel Cutout Dimensions: 2.125″ Round Cutout
Dimensions: 3″ (Horizontal) x 2.3″ (Vertical) x 2.3″ (Depth)
Mounting Studs 1.875″ Center to Center Horizontal & Vertical
Bocatech, Inc
BTMT3-50-50 EL
