Description

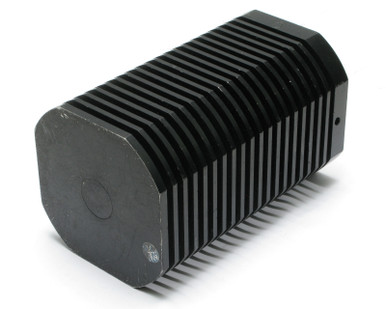

Bird Termaline 8166, 150 Watt 50-Ohm Dummy Load / Coaxial Resistor
Condition:
* Used, Removed From Service in Working Condition. Unable to Test. As Pictured.
Additional Notes:
* Connector: Type N Male
* Max. Power Handling: 150 Watt
* Frequency Range: DC – 2.5 GHz
* Max. VSWR:
• DC – 1 GHz: 1.1
• 1 – 2.5 GHz: 1.2
* Impedance: 50 Ω Nominal
* Temperature Range: -40°F to +113°F (-40°C to +45°C)
* Cooling Method: Natural Air Convection
* Operating Position: Any attitude
Bird Termaline
8166
