Description

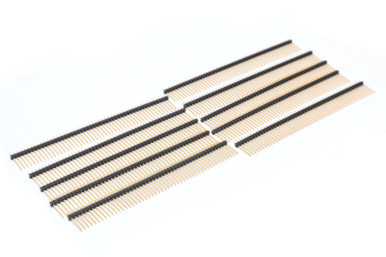

Connector Header, Through Hole, 40 Position, 0.100″, 10 Pack
Condition:
* New Surplus Stock, No OEM Packaging. As Pictured.
Additional Notes:
* Contact Type: Male Pin
* Pitch – Mating: 0.100″ (2.54mm)
* Number of Positions: 40
* Number of Rows: 1
* Contact Length – Mating: 0.318″ (8.08mm)
* Contact Length – Post: 0.125″ (3.18mm)
* Overall Contact Length: 0.533″ (13.55mm)
* Insulation Height: 0.090″ (2.29mm)
* Contact Shape: Square
* Contact Finish – Mating: Gold
* Contact Finish Thickness – Mating: 30.0µin (0.76µm)
* Contact Finish – Post: Tin
* Contact Material: Copper Alloy
* Insulation Material: Liquid Crystal Polymer (LCP)
UNK
RP23981
