Description

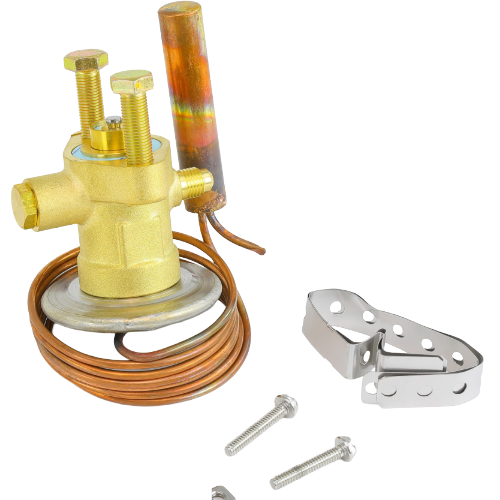

The Copeland 061724 (TCLE 2 HC) is a precision-engineered Externally Equalized Thermal Expansion Valve (TXV) designed for reliable refrigerant metering in medium-temperature refrigeration applications. Matched to R22 refrigerant systems at a 2-ton capacity, this valve delivers consistent superheat control and efficient system performance across a wide range of operating conditions.
Key Features
- 2-ton capacity, optimized for medium-temperature refrigeration systems
- Designed for use with R22 refrigerant with a medium-temperature charge
- Externally equalized design for accurate superheat control, ideal for systems with significant pressure drop across the evaporator
- SAE external connection with a 5-foot (5 ft) capillary tube for flexible installation and precise bulb placement
- Supplied less flange (VLF — Valve Less Flange) for versatile field installation
- Copeland quality construction for long-lasting, dependable performance in commercial refrigeration applications
Specifications
- SKU / Part Number: 061724
- Model: TCLE 2 HC
- Capacity: 2 Ton
- Refrigerant: R22
- Temperature Range: Medium Temperature Charge
- Equalization Type: Externally Equalized
- Connection Type: SAE External
- Capillary Tube Length: 5 Feet (5 FT)
- Flange: Less Flange (VLF)
Application
The Copeland 061724 TXV is well-suited for commercial and light-industrial refrigeration systems where precise refrigerant flow control is critical. The external equalizer port compensates for evaporator pressure drops, ensuring stable superheat and protecting the compressor from liquid slugging. The 5-foot capillary tube provides ample reach for proper bulb mounting on the suction line, supporting accurate sensing and valve response.
