Description

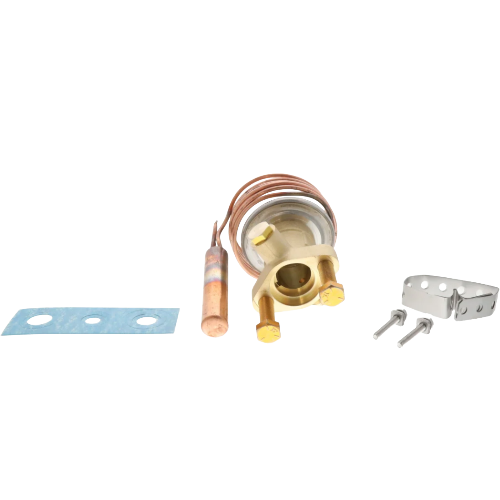

The Copeland 062437 (XB-1019HW1001B) is a precision-engineered power assembly designed for reliable refrigeration control in R22 systems. Built to exacting standards, this replacement power assembly includes all necessary capscrews for straightforward installation and is compatible with a wide range of commercial and light industrial refrigeration applications.
Key Features
- Designed for use with R22 refrigerant systems
- 1/4″ SAE (Flare) connection for secure, leak-free installation
- Equalizer type design for accurate pressure sensing and temperature control
- 5-foot capillary tube length provides flexible installation reach
- Wide application temperature range of -50°F to +50°F suits low- and medium-temperature refrigeration
- 100 PSI Maximum Operating Pressure (MOP) for safe, reliable operation
- Capscrews included for complete, ready-to-install assembly
Specifications
- SKU: 062437
- Model: XB-1019HW1001B
- Brand: Copeland
- Refrigerant Type: R22
- Connection Type: 1/4″ SAE (Flare)
- Equalizer Type: External
- Capillary Tube Length: 5 ft
- Application Temperature Range: -50°F to +50°F
- Maximum Operating Pressure (MOP): 100 PSI
- Hardware Included: Capscrews
Application
This power assembly is ideal for technicians servicing or upgrading thermostatic expansion valves (TXVs) in R22 refrigeration systems. The 5-foot capillary tube allows for flexible bulb placement, while the 100 PSI MOP rating provides a built-in safety limit to protect compressors from operating under excessively high suction pressures. The broad -50°F to +50°F temperature range makes this assembly suitable for low-temperature freezer applications through medium-temperature cooler installations.
