Copeland 062726 Thermal Expansion Valve (TXV) — 20-Ton R22/R407C

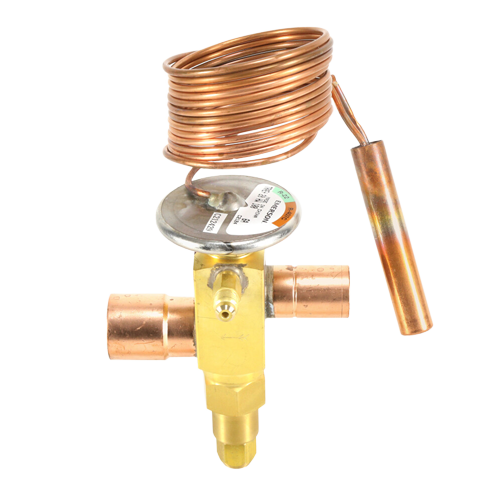

The Copeland 062726 (model TRAE+ 20 HW100 10FT 7/8 x 1 1/8 ODF S/T) is a heavy-duty thermal expansion valve engineered for large commercial refrigeration and air conditioning systems. Designed to precisely meter refrigerant flow, this TXV delivers consistent superheat control and system efficiency across a wide range of operating conditions.
Key Features
- 20-Ton capacity — suitable for large commercial HVAC and refrigeration applications
- Compatible with R22 and R407C refrigerants for broad system versatility
- Straight body configuration for straightforward inline installation
- 7/8″ x 1-1/8″ ODF (sweat) connections for secure, leak-free copper tube joining
- 10-foot capillary tube provides flexible bulb placement away from the valve body
- Maximum Operating Pressure (MOP) of 100 PSI for reliable compressor protection
- 1/4″ SAE (flare) external equalizer port ensures accurate superheat sensing in high-pressure-drop evaporators
Specifications
- SKU: 062726
- Model: TRAE+ 20 HW100 10FT 7/8 x 1 1/8 ODF S/T
- Valve Type: Thermal Expansion Valve (TXV)
- Body Style: Straight
- Capacity: 20 Ton
- Refrigerant: R22 / R407C
- Inlet Connection: 7/8″ ODF (Sweat)
- Outlet Connection: 1-1/8″ ODF (Sweat)
- Capillary Tube Length: 10 ft
- MOP Setting: 100 PSI
- Equalizer Type: External
- Equalizer Connection: 1/4″ SAE (Flare)
Application
Ideal for commercial rooftop units, chillers, split systems, and refrigeration equipment utilizing R22 or R407C refrigerant. The external equalizer design makes this TXV especially well-suited for evaporators with significant refrigerant-side pressure drop, ensuring accurate superheat control and protecting the compressor from liquid slugging.
