Description

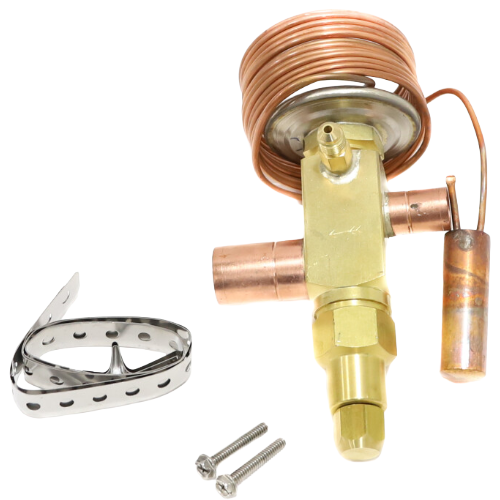

The Copeland 063510 (Model TRAE+ 15 HCA 10FT 5/8 X 7/8 ODF S/T) is a heavy-duty, externally equalized thermal expansion valve engineered for reliable refrigerant metering in commercial heat pump applications. Designed to work with R22 and R407C refrigerants at a 15-ton capacity, this TXV delivers precise superheat control and consistent system performance across a wide range of operating conditions.
Key Features
- Externally equalized design for accurate superheat sensing in longer or complex refrigerant circuits
- Straight body configuration for straightforward inline installation
- 5/8″ inlet x 7/8″ outlet sweat (ODF) connections for secure, leak-free copper tube joints
- 10-foot capillary tube provides installation flexibility and remote bulb placement
- Rated for R22 and R407C refrigerants — compatible with both legacy and transitional systems
- 15-ton capacity rating for medium-to-large commercial heat pump applications
- Heat pump charge formulation ensures proper operation in both heating and cooling modes
Specifications
- SKU: 063510
- Model: TRAE+ 15 HCA 10FT 5/8 X 7/8 ODF S/T
- Brand: Copeland
- Refrigerant Compatibility: R22 / R407C
- Capacity: 15 Ton
- Charge Type: Heat Pump
- Body Style: Straight
- Equalization: External
- Inlet Connection: 5/8″ ODF Sweat
- Outlet Connection: 7/8″ ODF Sweat
- Capillary Tube Length: 10 Feet
Application
Ideal for commercial HVAC contractors and refrigeration technicians servicing or installing large-capacity heat pump systems. The externally equalized valve is particularly well-suited for evaporators with high pressure drops or distributors, ensuring stable superheat control and protecting the compressor from liquid slugging. The 10-foot capillary tube allows the sensing bulb to be positioned precisely for optimal system response.
