Description

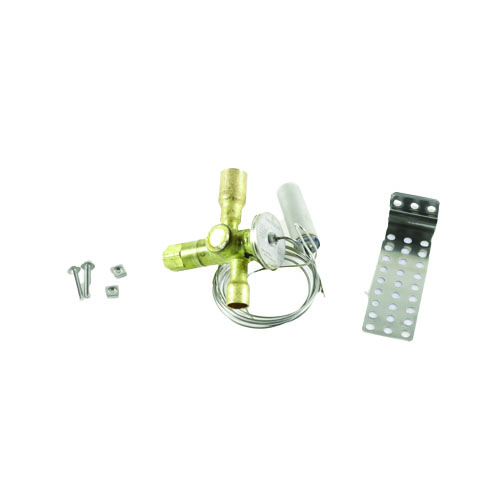

The Copeland 091036 is a high-performance NXT Series Thermal Expansion Valve (TXV) engineered for R410A refrigerant systems with a rated capacity of 6 tons. Designed for precision refrigerant metering, this valve delivers reliable superheat control and efficient system performance in demanding HVAC applications.
Key Features
- NXT Series Thermal Expansion Valve (TXV) for R410A refrigerant
- 6-ton rated capacity for medium-to-large commercial and residential systems
- Adjustable superheat for fine-tuned system optimization
- Integrated check valve for reliable bi-directional flow control
- Straight-through body design for minimal pressure drop and easy installation
- 1/2″ ODF inlet x 5/8″ ODF outlet sweat (ODF) connections
- 5-foot capillary tube for flexible bulb placement and remote sensing
- 1/4″ ODF external equalizer port for accurate pressure sensing across the evaporator
Specifications
- SKU: 091036
- Model: NAE 6 ZAA 5FT 1/2×5/8 ODF S/T
- Refrigerant: R410A
- Capacity: 6 Ton
- Inlet Connection: 1/2″ ODF (Sweat)
- Outlet Connection: 5/8″ ODF (Sweat)
- Capillary Tube Length: 5 feet
- External Equalizer: 1/4″ ODF
- Body Style: Straight Through
- Superheat: Adjustable
- Check Valve: Included
- Series: NXT
Application
The Copeland NXT Series TXV is ideal for use in split-system air conditioners, heat pumps, and refrigeration systems using R410A refrigerant. The external equalizer connection ensures accurate pressure compensation across longer evaporator coils, making this valve well-suited for systems where evaporator pressure drop is a concern. The adjustable superheat feature allows technicians to dial in optimal performance for each specific installation, reducing energy consumption and protecting the compressor from liquid slugging.
