Description

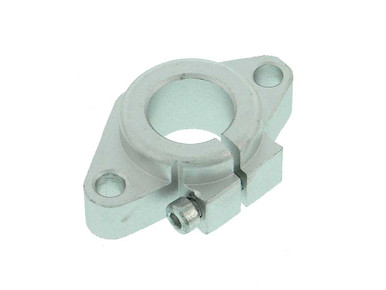

Flanged Support For Linear Guide Rail 16mm Bore
Additional Notes:
* Flange mount Aluminum support bracket for fixed linear slide (guide) rails used in 3D printers, linear drives and machine tools.
* Bore: for 16mm Polished Guide Rail
* Clamp Screw: M4-.70 Socket Head Cap
* Flange Thickness: 10.5mm
* Flange Holes: M5 Clearance, 40mm C/C
* Dimensions (WxHxD): 50mm x 31mm x 16.5
MPJA
33754 HD
