Description

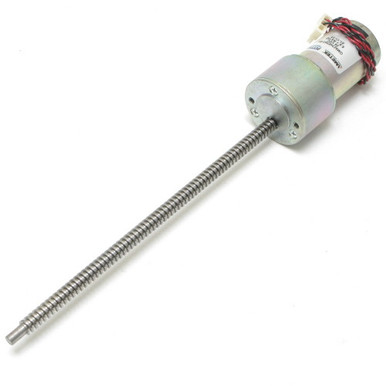

Gearhead Motor with 9 Inch Leadscrew
Specifications:
Voltage 24 Volt DC (Motor Works Well Down to 6 Volt DC)
Amperage 0.15 Amps at No Load
Power Leads: 17” Long Red And Black
Gear Ration 5.9:1
RPM: ~525 at 12 Volt, ~1050 at 24 Volt
Rotation Reversible
Shaft Length: 9″, Thread Length: 8″
Shaft 3/8″-8 Round Thread Leadscrew Right Hand ACME Thread
Motor Dimensions: 2.0″ Diameter (gear box) x 3.7″ Long
NOTE: Leadscrew Not Removable from Motor
Face Mount Two 10-32 Tapped Holes on 1-1/2″ Centers
Rear Mount Four 6-32 Tapped Holes on 11/16″ Square Centers
Ametek Pittman
GM9234E992-R1
