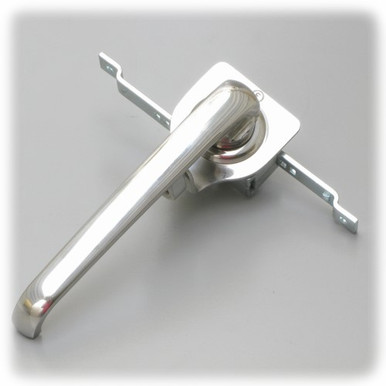

L Handle Latch with Two-Point Locking System
Specifications:
Handle Material: Stainless Steel
Drive Bar Material: Steel
Cam Material: Cast Aluminum
Handle Length: 6-3/4″
Handle Width: 13/16″
Handle Rotation: 180 Degree
Maximum Mounting Plate Dimensions: 2-1/4″ x 2-5/16″
Mounting Plate has 3 x 1/4-20 x 1/2″ Length Studs (No Nuts)
Handle Mounting Studs: 2 on top have 1-1/2″ centers, 1 on bottom has 2″ center from top studs.
Shaft: 3/8-16 x 1-1/2″ Length (With Nut)
Cam Body Dimensions: 2-1/8″ (L) x 1-1/16″ (W) x 7/8″ (D)
Depending on how you mount the cam body, the handle can open CW or CCW
Drive bars are 6-1/2″ end to end when handle is closed
Drive bars are 4-1/16″ end to end when handle is open
Each drive bar has a 3/16″ hole used to attach to a two-point locking system
Drive Bars are 9/16″ wide x 1/8″ thick
Handle and mounting plate have 1/2″ holes that when aligned can be secured with a padlock.
Applications: electrical cabinets, telecommunication, industry enclosures, jack box, etc.
