Description

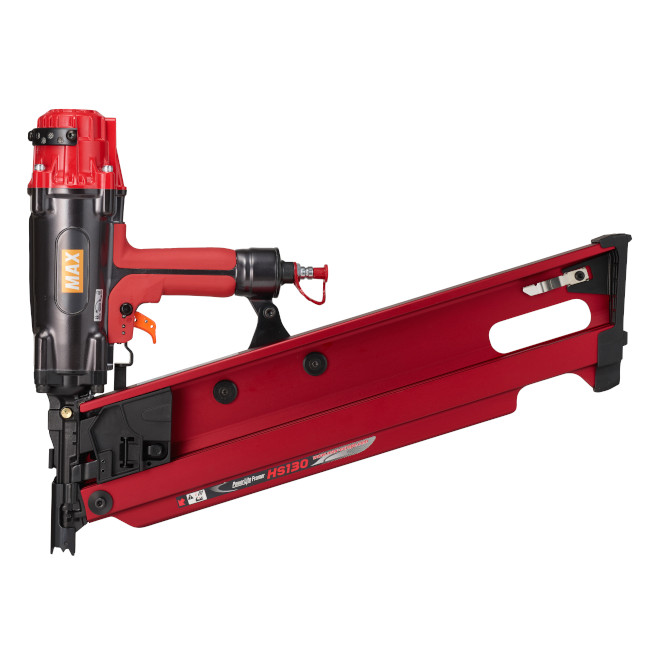

Max Tools HS130 High Pressure 5-1/8″ 21º Full Round Head Framing Stick Nailer
Max Tools HS130 High Pressure 5-1/8″ 21º Full Round Head Framing Stick Nailer:
Features:
- Product no. HS130
- Nailer series: PowerLite®
- High Pressure 21º Framing Full Round Head Stick Nailer up to 5-1/8″
- Operating pressure range: 170 PSI to 320 PSI
- Lightweight and slim for its size (9.5lbs) compared to conventional tools
- Well-balanced nailer makes one handed operation comfortable
- Powerful 2,071 in-lbs of driving force to easily fasten the toughest of materials
- Lower recoil action so users can avoid absorbing hard recoils to both their hand and wrist from daily operations
- Slip-resistant nose fitted with pointy teeth on the contact arm:
-
-
- Provides users a firm grip for operations such as toe-nailing and framing
-
-
- Nose magnet holds the last nail in place to prevent jamming and easy load and reload
- Open nose allows for easy jam clearance such any issues arise
- Trigger lock to avoid accidental firing
- Self-cleaning maintenance-free end cap filter:
-
-
- Prevents foreign substances from entering the tool
- Inside of tool kept clean so internal components last longer
- Foreign substances ejected automatically when air hose disconnected
-
-
- Typical Applications:
-
-
- Pole barn construction
- Heavy duty crating
- Framing
-
-
Specifications:
- Fasteners:
-
-
- Collation Type: Plastic
- Nail Gun Angle: 21º
- Strip or Coil: Strip
- Compatible Fastener Types: Full round head stick nails
- Minimum Fastener Size: 3-1/2″
- Maximum Fastener Size: 5-1/8″
- Minimum Nail Diameter: 0.122″
- Maximum Nail Diameter: 0.165″
-
-
- Tool:
-
-
- Weight: 9.5 lbs
- Dimensions: 16-3/4″(H) x 3-5/16″(W) x 22-1/4″(L)
- Minimum Operating Pressure: 250 PSI
- Maximum Operating Pressure: 320 PSI
- Air Inlet Size: 7/16″
- Magazine Capacity: 64 Nails
- Depth Control: No
- Jam Clearing: No
- Trigger Type: Sequential Fire Trigger
- Accessories: Safety glasses
-
-
