Description

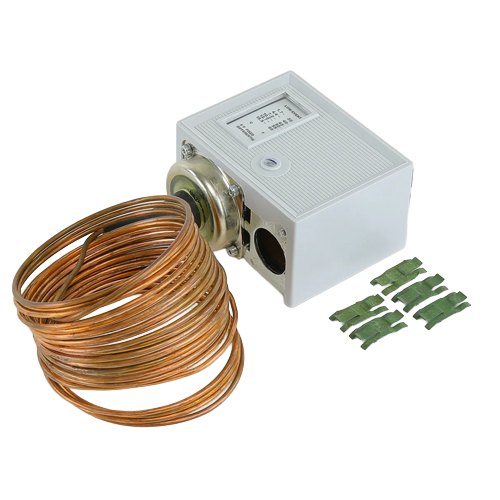

The Schneider Electric (Barber Colman) TC-5232 is a professional-grade low temperature thermostat engineered to detect and respond to freezing conditions in HVAC and building automation applications. With a wide voltage compatibility range and a robust capillary sensing element, this thermostat is a reliable choice for protecting coils, air handlers, and other equipment from freeze damage.
Key Features
- Setpoint range of 35°F to 60°F for precise low-temperature freeze protection
- Auto reset operation — automatically resets once temperature rises above setpoint
- DPST (Double Pole, Single Throw) switching action for reliable circuit control
- Wide voltage compatibility: 24V to 277V for versatile installation across commercial and residential systems
- 20-foot capillary tube provides extended sensing coverage across large coil faces or air handling units
- Includes capillary mounting clips for secure, professional installation
Applications
- Freeze protection for air handling units and fan coil units
- Low temperature safety control in commercial HVAC systems
- Building automation and mechanical room freeze stat applications
- Protection of hydronic heating coils in cold air streams
Specifications
- Brand: Schneider Electric (Barber Colman)
- Model / SKU: TC-5232
- Setpoint Range: 35°F to 60°F
- Reset Type: Automatic
- Switch Type: DPST (Double Pole, Single Throw)
- Voltage: 24V – 277V
- Capillary Length: 20 feet
- Includes: Capillary mounting clips
