Description

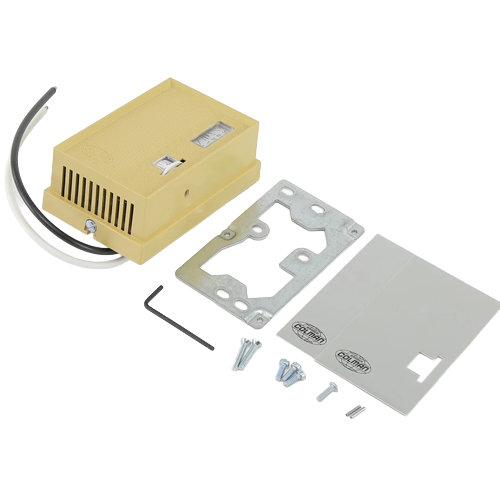

The Schneider Electric (Barber Colman) TK-1001-116 is a pneumatic room thermostat engineered for reliable heating control in commercial and institutional HVAC systems. Designed for 2-pipe pneumatic control circuits, this direct-acting thermostat delivers precise, responsive temperature regulation without the need for electrical power at the device.
Key Features
- Direct-acting operation — branch pressure increases as room temperature rises
- Heating application — optimized for single-function heating control
- 2-pipe pneumatic system compatible — main air supply and branch output
- Temperature control range: 13°C to 29°C (approximately 55°F to 84°F)
- Compatible with 15 PSIG or 20 PSIG supply air pressure systems
- 5/32″ plastic tubing air connection for easy field installation
- Barber Colman heritage design, now under the Schneider Electric brand
Technical Specifications
- SKU: TK-1001-116
- Brand: Schneider Electric (Barber Colman)
- Control Action: Direct Acting
- Application: Heating
- System Type: 2-Pipe Pneumatic
- Control Range: 13–29°C (55–84°F)
- Supply Air Pressure: 15 PSIG or 20 PSIG
- Air Connection: 5/32″ Plastic Tubing
Applications
The TK-1001-116 is well suited for use in commercial office buildings, schools, hospitals, and other facilities utilizing pneumatic HVAC control systems. Its straightforward 2-pipe design and wide compatibility with standard supply air pressures make it a dependable choice for maintaining occupant comfort in heating-only zones.
