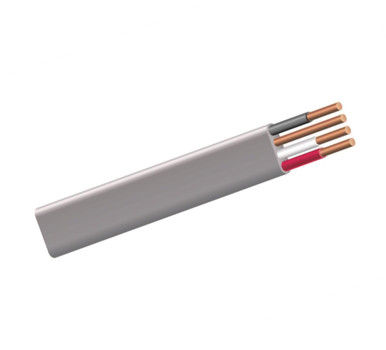

UF-B, 6/3, Underground Feeder, Direct Burial, 1000 Foot
Shipped Directly From MFG, Not Available For Pickup At Store
Description:
UF-B, 6 Gauge, 3 Conductor, Solid, With Ground, 1000 Foot
Specifications:
Quantity: 1000 Foot
3 Conductor x 6 Gauge Solid Insulated Copper Conductors (Black, Red, and White)
1 Conductor x 10 Gauge Bare Solid Copper Ground Wire
Rated Amps: 55 Amps
Jacket Type: Direct Burial Rated PVC Jacket (Polyvinyl Chloride)
Jacket Color: Grey
Color of Wire May not be the Same as the Picture Shown
Temperature Rating: 75 Degree C Dry and Wet
Voltage Rating: 600 Volts
Applications:
Known by its grey outer sheathing, this type of electrical wire (Underground Feeder Cable) is generally used to power outside equipment.
Multiple conductor UF-B cable may be used for interior branch circuit wiring in residential or agricultural buildings
