Description
SPECS:
- SKU: U11234 (Water-Cooled)
- Primary Input Voltage: 415V Three-Phase Supply Plug: Unplugged (32A Recommended)
- Ieff (A): 22.0
- Imax (A): 42.8
- Rated Output: 20 500A
- No Load Voltage (V): 82
- Protection Class: IP23S
- Insulation Class: H
- Minimum Generator (kVA): 40
- Dinse Connector: 35/50
- Standard: AS 60974.1
- Welds:
- MIG – Mild Steel, Stainless Steel, Aluminium, Silicon Bronze
- MMA – Mild Steel, Stainless Steel, Cast Iron
- TIG – Mild Steel, Stainless Steel, Copper, Silicon Bronze
- Warranty: 5 Years
- MIG SPECIFICATIONS:
- MIG Welding Current Range: 30 500A
- MIG Duty Cycle @ 40 C: 40% @ 500A 60% @ 408A 100% @ 316A
- MIG Wire Size Range: 0.8 1.6mm
- MIG Wire Spool Size: 5kg (200mm), 15kg (300mm)
- MIG Welding Thickness Range: 1 30mm
- Drive Roller Size: 37/24
- TIG SPECIFICATIONS:
- TIG Function Type: DC Lift Arc
- TIG Welding Current Range: 20 500A
- TIG Duty Cycle @ 40 C: 40% @ 500A 60% @ 408A 100% @ 316A
- TIG Welding Thickness Range: 1 10mm
- MMA SPECIFICATIONS:
- STICK Welding Current Range: 10 500A
- STICK Duty Cycle @ 40 C: 40% @ 500A 60% @ 408A 100% @ 316A
- STICK Electrode Range: 2.5 6.0mm
- STICK Welding Thickness Range: 2 20mm
- SIZE & WEIGHT
- Dimensions (mm): 1520 x 520 x 980
- Power Source Weight (kg): 30.0
- Separate Wire Feeder Weight (kg): 17.8
- Trolley With Water Cooler Weight (kg): 46.85
- 5 Years warranty
- Made in China
INCLUDES:

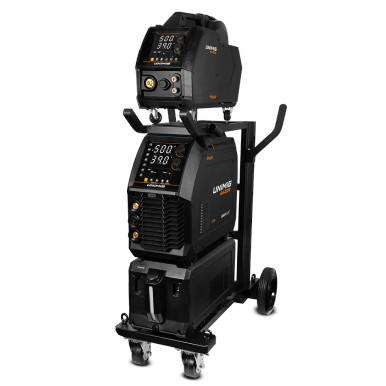

- RAZOR SWF 500 Water-Cooled Welder
- 4m M580 Digital Water-Cooled MIG Torch
- 4m Twist Lock Electrode Holder
- 4m 500A Earth Clamp & Lead
- Twin Gauge Argon Regulator
- 1.8m Quick-Connect Gas Hose
- Operating Manual
- 2 x 0.8-0.9mm V Groove Rollers
- 2 x 1.0-1.2mm V Groove Rollers
- 2 x 0.8-0.9mm F Groove Rollers
- 2 x 1.0-1.2mm F Groove Rollers
- 4 x 1.0-1.2mm U Groove Rollers
